Product Name:
DANNOVO Megapixel Fixed Lens:3.6mm/6mm/8mm/12mm
Main Features
DANNOVO Megapixel Fixed Lens:3.6mm/6mm/8mm/12mm:
Optional Models:
DN-LFM036IR: 3.6mm Fixed Megapixel Lens;
DN-LFM06IR: 6mm Fixed Megapixel Lens;
DN-LFM08IR: 8mm Fixed Megapixel Lens;
DN-LFM012IR: 12mm Fixed Megapixel Lens.
 |
 |
 |
|
 |
|||
| 镜头类型Lens Type |
Megapixel Fixed Lens | |||
| 型号Model Number | DN-LFM036IR | DN-LFM06IR | DN-LFM08IR | DN-LFM012IR |
| 品牌Brand |
DANNOVO | |||
| 像面尺寸Image Format | 1/3" | 1/3" | 1/3" | 1/3" |
| 接口Mount Interface | CS | CS | CS | CS |
| 焦距Focal Length | 3.6mm | 6.0mm | 8.0mm | 12mm |
| 通光孔径Aperture,F/# | 1.8 | 1.8 | 1.8 | 1.8 |
| 视角H.F.O.V. | 77° | 48° | 35.52° | 22.72° |
| 光圈Iris | Fixed | Fixed | Fixed | Fixed |
| 感测器Sensor | CCD/CMOS | CCD/CMOS | CCD/CMOS | CCD/CMOS |
| 分辨率Resolution | Megapixel | Megapixel | Megapixel | Megapixel |
| 后焦距Back Focal Length | 6.59mm | 8.75mm | 5.4mm | 6.54mm |
| 有效通光口径Effective Aperture | φ10.4mm/φ5.4mm | φ7.4mm/φ6.9mm | φ8.4mm/φ8mm | φ7.4mm/φ5.5mm |
| 最近物距M.O.D | 0.2m | 0.2m | 0.2m | 0.2m |

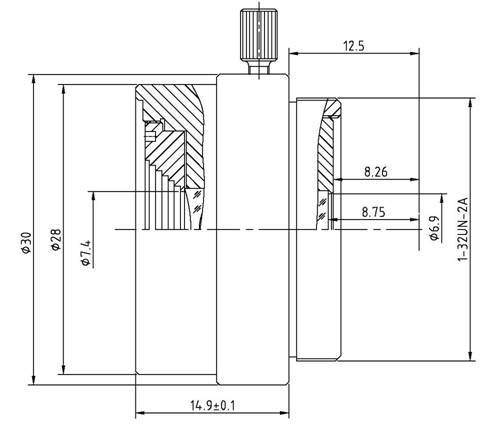

| 尺寸Dimensions | φ30×14.2mm | φ30×14.9mm | φ30×14.5mm | φ30×14mm |
