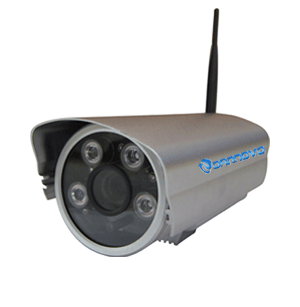

DANNOVO Wireless Wide Dynamic Range Low Lux IP Camera,HD 720P MegaPixel Outdoor Waterproof IR WiFi With SD and Good Night Vision(DN-H09-MPC-WDRD-WS)
Main Features
DANNOVO Wireless Wide Dynamic Range(WDR) Low Lux IP Camera,HD 720P MegaPixel Outdoor Waterproof IR WiFi,Good quality Night Vision Effect,Support Onvif Protocal,SD card Storage and Two-way Audio(DN-H09-MPC-WDRD-WS):
Optional Modules:
Without WIFI(DN-H09-MPC-WDRD);
Wide Dynamic Range(WDR) Low Lux IP Camera Features:
1/3" Progressive Scan WDR CMOS Sensor,Min.Illumination:Color Mode:0.05Lux @(F1.2,AGC ON,0Lux IR ON),WDR>=100dB,Video Compression:H.264 Main Profile,Dual Stream,Maximum resolution:1280*720,IR Parameters:4 IR LEDs,IR distance 50m,dual IR-Cut filter,Support Wireless function, Focal Length:5-15mm
> 1/3" Progressive Scan WDR CMOS Sensor;
> Support 1280*720 high definition;
> WDR>=100dB;
> Support Wireless wifi;
> Support Color/BW mode converting (dual IR-Cut filter);
> Built-in 5-15mm varifocal lens;
> 4 pieces high power infrared LED light, the distance up to 30 -50meters;
> H.264/MJEG is optional, dual streaming, low bandwidth, and high quality;
> Support AWB, natual color, clear image;
> Build in 1 channel audio input and audio output ports, support realtime audio capture and two-way talking;
> Built-in SD card slot, support SDHC card.Optional;
> Water and Dust Resistance: IP66;
> Support protocals: RTSP,RTP,HTTP,TCP/IP,UDP,SMTP,PPPoE,DDNS,DNS,SNTP,DHCP,FTP;
> Support pravicy zone mask (max 4 individal mask zone);
> Alarm recording: video lost, motion detection and sensor alarm;
> Built-in Web server enables the use of a standard Web browser for viewing and management.
![]() |
![]() |
||||||
Wide Dynamic Range(WDR) Low Lux IP Camera Model |
DN-H09-MPC-WDRD-WS | |||||
| Hardware | ||||||
| Network chip | Lan | Realtek 10/100M BASE-TX Self-adapting | ||||
| Sensor | 1/3" Progressive Scan WDR CMOS | |||||
| Effective Pixels | 1280(H)X720(V) | |||||
| Min.Illumination | Color Mode:0.05Lux @(F1.2,AGC ON,0Lux IR ON) | |||||
| S/N | >=50db(AGC OFF) | |||||
| Day/night | ICR | |||||
| IR Parameters | 4 IR LEDs,IR distance 50m | |||||
| WDR | >=100dB | |||||
| Auto Electronic Shutter | Auto | |||||
| Interfaces | ||||||
| Optical lens | Interfaces | 14 | ||||
| Lens | Auto Iris | |||||
| Focal Length | 5-15mm | |||||
| Audio Talkback | 1 channel MIC input, External access, 3.5 mm audio interface | |||||
| Audio Output | 1 channellinear output, 3.5 mm audio interface | |||||
| Storage Interface | SDHC card supports video storage and image snapping; SD2.0 standard,maximum storage 32G | |||||
| Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector | ||||
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS485 interface | |||||
| Audio video encoding | ||||||
| Video Compression | H.264 Main Profile; MJPEG/JPEG Baseline | |||||
| Resolution | Master Streaming | 1280*720,1-25(30)fps/sec | ||||
| Second Streaming |
640*480,1-25fps/sec | |||||
| Video Bitrate | 32Kbps~16Mbps,Supports CBR/VBR | |||||
| Title OSD | Supports channel name, date, and video stream information overlay;OSD location is adjustable | |||||
| Audio Compression | G.726,G.711A,G.711U,AAC,support 32 K stereo | |||||
| Data transmission and storage | ||||||
| Data storage | Video and Image | |||||
| Recording | Recording set up to record by motion trigger,alarm trigger, manual, or schedule | |||||
| Alarm Output | FTP,E-mail, Explorer, Software | |||||
| Network protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP | |||||
| Wireless protocols(-WS) | 802.11b/g/n,Supports WEP,WPA,WPA2("-WS" model supports) | |||||
| ONVIF protocol | Support | |||||
| Remote View | Computer | IE 6.0 or up, max 10user | ||||
| Mobile Phone | Windows Mobile,Symbian,iPhone,Android | |||||
| General Parameters | ||||||
| Operating Temperature | -10 - +55 | |||||
| Operating Humidity | 0% - 90% | |||||
| Power | DC12V | |||||
| Power Consumption | 15W(MAX) | |||||

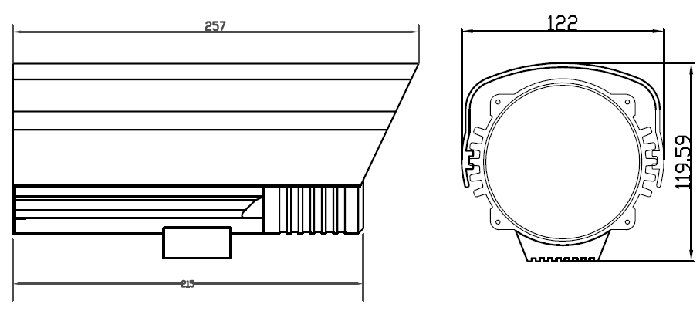

| Dimension | 257(L) *122(W)*120(H)mm | |||||
| Weight | 1.8KG | |||||
