Product Name:
DANNOVO Sony 36x Zoom IR High Speed Dome PTZ IP Camera Outdoor Waterproof,Support SD Card Storage,iPhone,Onvif,Two-way Audio,Alarm,RTSP(DN-PTZH06-S36-IR)
Main Features
DANNOVO Sony 36x Zoom IR High Speed Dome PTZ IP Camera Outdoor Waterproof,Support SD Card Storage,iPhone,Onvif,Two-way Audio,Alarm,RTSP(DN-PTZH06-S36-IR):
Optional Module:
> PAL & NTSC SamSung 27x Optical Zoom: DN-PTZH06-A27-IR;
> PAL & NTSC Sony 18x Optical Zoom: DN-PTZH06-S18-IR;
> PAL & NTSC Sony 28x Optical Zoom: DN-PTZH06-S18-IR;
> PAL & NTSC Sony 36x Optical Zoom: DN-PTZH06-S36-IR;
> PAL LG 28x Optical Zoom: DN-PTZH06-L28-IR;
Sony 36x Optical Zoom IR High Speed Dome PTZ IP Camera Features:
> 1/3 Sony CCD,Sony 36xOptical Zoom;
> 10 Big IR Leds;IR Ditance:100-150M;
> Horizontal Rotation Range 360º;Vertical:-5-90º ；
> Horizontal Speed:0.01~350°/sec,Vertical:0.01~120°/s;
> Support Micro SD Card Storage,Two-way Audio,Motion detection,Alarm,RTSP;
> Support Onvif Protocol,iPhone,Android etc Mobile Viewing;
> H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily;
> Up to 30 frames per second in all resolutions ranging up to 704x576;
> Upto 10viewers can directly access the camera simultaneously;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> Support remote control and view ip camera;
> Support remote software upgrade;
> Support dynamic IP address , LAN, Internet (ADSL and Cable Modem);
> Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP;
> 1ch Mic input and 1ch linear audio output;
> Auto-adjusting frame rate according to realtime network rate;
> Alarm recording: video lost, motion detection and sensor alarm;
> Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols, supports transparent protocols;
> Auto-recovery after exception occurs or the network being reconnect.
 |
 |
 |
|
 |
|||
| Sony 36x Zoom IR High Speed Dome PTZ IP Camera Model:DN-PTZH06-S36-IR | ||
| Integration camera | Sony | |
| Horizontal rotation range | 360ºUnlimited rotation | |
| Horizontal speed | 0.01~350°/sec | |
| Vertical rotation range | -5º～90º | |
| Vertical speed | 0.01~120°/s | |
| Preset positions | 128 preset positions | |
| Cruise | 8 groups/Each group has 32 presets | |
| IR Parameters | 10 Big IR LEDs, IR Distance 100-150m | |
| IR LEDS brightness adjust | Manual/Auto | |
| S/N | ≥50db(AGC OFF) | |
| Day/night | Auto | |
| Interfaces | ||
| Audio Talkback | 1 channel MIC input, External access | |
| Audio Output | 1 channel linear output | |
| Storage Interface | Support Micro SDHC Card | |
| Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector |
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output | |
| Audio video encoding | ||
| Video Compression | H.264 Main Profile; MJPEG/JPEG Baseline | |
| Resolution | Master/Second Streaming | D1:704*576(PAL),1-25fps/sec;704*480(N),1-30fps/sec Half-D1:704*288(PAL),1-25fps/sec;704*240(N),1-30fps/sec CIF:352*288(PAL),1-25fps/sec;352*240(N),1-30fps/sec QCIF:176*144(PAL),1-25fps/sec;176*120(N),1-30fps/sec |
| Video Bitrate | 32Kbps～16Mbps,Supports CBR/VBR | |
| Title OSD | Supports channel name, date, and video stream information overlay; OSD location is adjustable | |
| Audio Compression | G.726,G.711,AAC | |
| Data transmission and storage | ||
| Data storage | Video and Image | |
| Recording | Recording set up to record by motion trigger, alarm trigger, manual, or schedule | |
| Alarm Output | FTP,E-mail, Explorer, Software | |
| Network protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP | |
| Remote View | Computer | IE 6.0 or up, max 10user |
| Mobile Phone | Windows Mobile, Symbian, iPhone, Android | |
| General Parameters | ||
| Water and Dust Resistance | IP66 | |
| Material | 7’’ dome, aluminum shell | |
| Operating Temperature | -35℃ - +55℃ | |
| Operating Humidity | 0% - 90% | |
| Power | DC12V±10% | |
| Power Consumption | 50W(MAX) | |

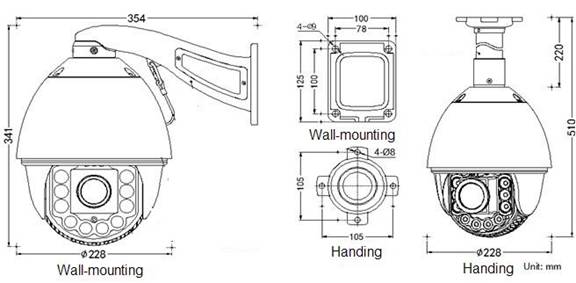

| Dimension | Φ228 *341(H)mm | |
