Product Name:

DANNOVO Outdoor HD CCD 1.3 Megapixel IR High Speed Dome IP Camera,PTZ HITACHI 216xZoom,150M IR Distance,Support Micro SD Slot,Two-way Audio,Android,iPhone,Onvif(DN-HDPTZ06-MPD-IR)

Main Features

DANNOVO Outdoor HD CCD 1.3 Megapixel IR High Speed Dome IP Camera,PTZ HITACHI 216xZoom,150M IR Distance,Support Micro SD Slot,Two-way Audio,Android,iPhone,Onvif(DN-HDPTZ06-MPD-IR):



HD CCD 1.3 Megapixel High Speed Dome IP Camera Feature:



1/3" Progressive Scan CCD Sensor,Total pixels:1.3 MegaPixels;HITACHI 18x Optical X 12x Digital Zoom(216x Zoom);Min.Illumination:Color Mode:Color Mode:0.1Lux@F1.6,B/W Mode:0.005Lux@F1.6,WDR;10 big IR Leds,IR Distance can Reach 150M,Dual IR-Cut Filter;Video Compression: H.264 Main Profile,Dual Stream;Max Resolution:1280x960;Focal Length:f=4.7mm(W)-84.6mm(T); Horizontal Angle of View:55.2°(W)~3.2°(T);Horizontal Range:360°Continuous Rotation,Vertical Range:90°(Auto flIP);Horizontal Speed:0.01º-350º/s,Vertical Speed:0.01º-120º/s; Support Infrared Auto-dimming Technology;Preset Position:256; All Aluminium crust and sphere,IP66;Support Onvif Protocol,andAndroid,iPhone Viewing.

> 1/3" Progressive Scan CCD,Total pixels :1.3M;
> HITACHI 18x Optical X 12x Digital Zoom(216 X Zoom) ;
> 10big IR Leds,IR Distance can Reach 150M,Dual IR-Cut Filter;
> Focal Length:f=4.7mm(W)-84.6mm(T);
> Horizontal Angle of View:55.2°(W)~3.2°(T);
> Horizontal Range:360°Continuous Rotation,Vertical Range:90°(Auto flIP);
> Horizontal Speed:0.01º-350º/s,Vertical Speed:0.01º-120º/s;
> Support Micro SD Storage,Two-Way Audio,Alarm,RTSP;
> Support Infrared Auto-dimming Technology;
> Preset Position:256;
> All Aluminium crust and sphere,IP66;
> Support Onvif Protocol,iPhone,Android etc Mobile Viewing;
> H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily;
> Up to 30 frames per second in all resolutions ranging up to 1280x960;
> Upto 10viewers can directly access the camera simultaneously;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> Support remote control and view ip camera;
> Support remote software upgrade;
> Support dynamic IP address , LAN, Internet (ADSL and Cable Modem);
> Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP;
> Auto-adjusting frame rate according to realtime network rate;
> Alarm recording: video lost, motion detection and sensor alarm;
> Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols, supports transparent protocols;
> Auto-recovery after exception occurs or the network being reconnect.

  Outdoor HD CCD 1.3 Megapixel High Speed Dome IP Camera Specifications Outdoor HD CCD 1.3 Megapixel High Speed Dome IP Camera Details Outdoor HD CCD 1.3 Megapixel High Speed Dome IP Camera Download

Outdoor IR PTZ HD CCD 1.3 Megapixel IR High Speed Dome IP Camera Model

DN-HDPTZ06-MPD-IR
Hardware
Network chip Lan Realtek 10/100M BASE-TX Self-adapting
Sensor 1/3" Progressive Scan CCD
Effective Pixels 1280(H)×960(V)
Lens 18 X optical 12X digital zoom
Focal Length f=4.7mm(W) ~ 84.6mm(T)
Iris F1.6 ~F2.8
Horizontal Angle of View 55.2°(W)~3.2°(T)
Min.Illumination Color Mode:0.1Lux@F1.6,B/W Mode:0.005Lux@F1.6,WDR
Day/night Auto swith (dual IR-Cut filter).
S/N ≥50db(AGC OFF)
Parameters adjustment AWB,AGC,BLC
Auto Electronic Shutter 1/25—1/10000sec,Slow shutter:1/2,1/4,1/8,1/12sec
Infrared 10 LEDs ;IR distance 150M(Max)
Interfaces
Audio Talkback 1 channel MIC input, 3.5 mm connector
Audio Output 1 channel output, 3.5 mm connector
Network Interface Lan 10/100M BASE-TX,RJ-45 connector
Alarm(Optional) Input: 7; Output: 2

Audio video encoding
Video Compression H.264 Main Profile;
MJPEG/JPEG Baseline
Resolution Master Streaming 1280*960,1-16.7(20)fps/sec
1280*720,1-25(30)fps/sec
Second Streaming 640*480,1-25fps/sec
320*240,1-25fps/sec
160*112,1-25fps/sec
Video Bitrate 32Kbps~16Mbps,Supports CBR/VBR
Information Display Dome title,Preset title,Auto scanning title,Area scanning title,zoom,PTZ ,Alarm information,Date/Time
Audio Compression G.711, G.726,support 32 K stereo
Data transmission and storage
Data storage Video and Image
Recording Manual
Alarm Output E-mail, Explorer, Software
Network protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF protocol Support
Remote View Computer IE 6.0 or up, max 16 user
Mobile Phone Support Windows Mobile、Symbian、iPhone、Android platform
Speical Parameters
Infrared auto-dimming technology Support
Autotracking technology \
Graphical menu \

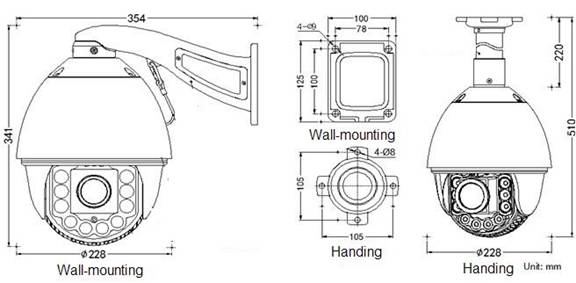

Hanging fast installation
\
General Parameters
OSD Support
Protection grade IP66
Mechanical properties Horizontal range 360°
Horizontal speed 0.01º~350º/S
Vertical range 90°( Auto flip)
Vertical speed 0.01º~120º/S
Preset point 256
Patrol 8 Patrols, each patrol up to 32 presets
Auto scanning 8
Pattern 4 Patterns,500 commands(about 30 minute)/pattern
Privacy zone 8 area
Material All Aluminium crust and sphere
Operating Temperature -35℃-+55℃
Operating Humidity 0% - 90%
Power DC12V±10%

Power Consumption 50W
