DANNOVO HD 1.3MP 960P IR-Cut POE Box IP Camera Low Lux,Day & Night,Support ONVIF,Mobile phone,RTSP(DN-H51-MPC-ICR-POE)
Main Features
DANNOVO HD 1.3MP 960P IR-Cut POE Box IP Camera Low Lux,Day & Night,Support ONVIF,Mobile Phone,RTSP(DN-H51-MPC-ICR-POE):
HD 1.3MP 960P IR-Cut POE Box IP Camera Features:
>1/3"Progressive Scan CMOS, Capture Motion Images Without Jagged;
> Max Resolution:1280×960, Output HD 960P/720P Image;
>Excellent Low Light Performance, Min Illumination:0.1lux@(F1.2);
>Built-in IR-Cut Fliter,Day & Night;
>H.264/MJPEG is Optional, Dual Streaming, High Compression Ratio, and High Quality;
>Support Mobile Phone: iPhone,Android,Symbian,Windows Mobile;
>Support RTSP,Motion Detection,Email,FTP Alarm;
>Support Lens Distortion Correction;
>Support Auto Iris;--Need Lens supports;
>High Signal-To-Noise Ratio, Clear Image;
>Power Supply: DC 12V/POE;
>Support 4 Area Privacy Mask;
>Built-In Web Server Enables The Use of a Standard Web Browser For Viewing And Management;
>Support Onvif Protocol;
>Support protocals: TCP/IP.UDP.RTP.RTSP.RTCP.HTTP.DNS.DDNS.DHCP.FTP.NTP.PPPOE.SMTP,UPNP,Onvif ;
> Built-in Web server enables the use of a standard Web browser for viewing and management.
Optional Models:
DN-H51-MPC-POE: Without IR-Cut Filter,but Built-in POE.
Applications Scenarios:
Apply to Financial Services, Supermarkets, Government, Schools, Airports, Factories, Hotels, Museums and Other Places.
 |
 |
 |
|
 |
|||
| Model | DN-H51-MPC-ICR-POE | ||
| Hardware | |||
| Soc | Hi3518C | ||
| Sensor | 1/3" Progressive Scan Low Light CMOS | ||
| Effective Pixels | 1280(H)×960(V) | ||
| Min,Illumination | Color Mode:0.1lux | ||
| S/N | ≥50db(AGC Off) | ||
| WDR | ≥80db | ||
| Day & Night | Auto,IR-Cut Filter | ||
|
Optical Lens |
Interface | CS/C | |
| Lens | Auto Iris(DC Drive) | ||
| Focal | Optional | ||
| Network Interface | 10/100m Base-Tx,RJ-45 Connector | ||
| Audio Video Encoding | |||
| Video Compression | H.264 Baseline Profile MJPEG | ||
|
Resolution |
Master Streaming | 1280x960,1-25(30) fps/Sec 1280x720,1-25(30) fps/Sec 960x720,1-25(30) fps/Sec 720x576,1-25(30) fps/Sec | |
| Second Streaming | 704x576,1-25(30) fps/Sec 640x480,1-25(30) fps/Sec | ||
| Video Bitrates |
32kbps～16mbps,Supports CBR/VBR | ||
| Title OSD |
Supports Channel Name, Date, and Video Stream Information Overlay’s Location is Adjustable | ||
| Data Transmission And Storage | |||
| Data Storage | Video And Image | ||
| Recording | Recording Set Up To Record By Manual, Or Schedule | ||
| Network Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP, PPPOE,SMTP,UPNP,Onvif | ||
| Remote View | IE6.0 or Up, Max 16 Users | ||
| General Parameters | |||
| Operating Temperature | -10℃ - +55℃ | ||
| Operating Humidity | 0% - 90% | ||
| Power | DC 12V/POE | ||
| Power Consumption | 2,5w(Max) | ||

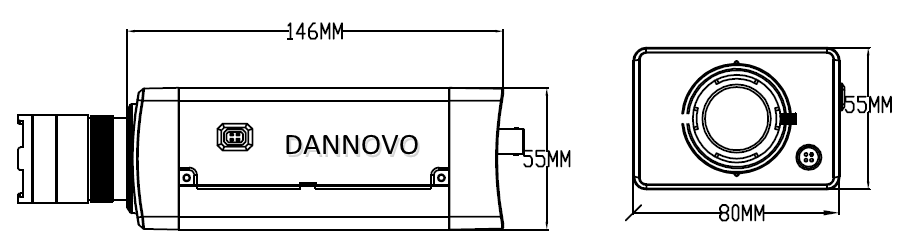

| Dimension | 146(L) x 80(W) x 55(H)mm(Lens Not Included) | ||
| Weight | 0.5kg | ||
