DANNOVO High Definition 1080P 2.0Mega Pixels ICR POE Dome IP Camera,Support WDR,Onvif,RTSP,SD Card,Audio,Mobile phone(DN-H15-MPC-TD-ICR-POE)
Main Features
DANNOVO High Definition 1080P 2.0Mega Pixels ICR POE Dome IP Camera Indoor,Support WDR,Onvif,RTSP,SD Card,Audio,Mobile phone(DN-H15-MPC-TD-ICR-POE):
Optional Modules:
DN-H15-MPC-TD: Without IR Leds Type; DN-H15-MPC-TD-IR: With IR Leds and IR-Cut Filter; DN-H15-MPC-TD-POE: Built-in PoE Module and Without IR Leds Type; DN-H15-MPC-TD-IR-POE: Built-in PoE Module and With IR Leds and IR-Cut Filter; DN-H15-MPC-TD-ICR-POE: Built-in PoE Module and With IR-Cut Filter.
DN-H15-MPC-TD-ICR: With IR-Cut Filter;
HD 1080P ICR POE Dome IP Camera Features:
1/3" Progressive Scan CMOSsensor ,Total pixels 2.0M,Min.Illumination:Color Mode:0.1Lux@（F1.2 AGC ON）;B/W Mode:0.001Lux @(F1.2,IR ON),Video Compression:H.264 Main Profile,Dual Stream,Maximum resolution:1920x1080,Dual IR-Cut Filter,POE Module Built-in.
> 1/3"Progressive Scan CMOS Sensor;
> Min. Illumination: Color Mode: 0.1Lux@ (F1.2 AGC ON); B/W Mode: 0.001Lux@ (F1.2 AGC ON);
> Support 1920x1080 High Definition;
> Built-in POE Module;
> Built-in 2.8-12mm Manual Varifocal Lens;
> Dual IR-Cut filter;
> Dual-streaming:H.264 and MJPEG;
> Support RTSP, Two-way Audio, Motion Detection, Alarm, Micro SDHC Card Storage;
> Onvif Compliant;
> Mobile Phone Viewing: iPhone, Android, Symbian and Windows Mobile;
> Free Super Client Software.
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> DC12V/PoE power supply (options) .
 |
 |
 |
|
 |
|||
|
Model |
DN-H15-MPC-TD-ICR-POE | |
|
Hardware |
| |
|
Network chip |
Lan |
Realtek 10/100M BASE-TX Self-adapting |
|
Sensor |
1/3" Progressive Scan CMOS | |
|
Effective Pixels |
1920(H)×1080(V) | |
|
Min.Illumination |
Color Mode:0.1Lux @(F1.2,AGC ON),B/W Mode:0.001Lux @(F1.2,AGC ON) | |
|
S/N |
≥50db(AGC OFF) | |
|
Day/night |
Auto, Dual IR-Cut filter | |
|
Auto Electronic Shutter |
Auto | |
|
Interfaces |
| |
|
Optical lens |
Interfaces |
Φ14 |
|
Lens |
Manual zoom | |
|
Focal Length |
2.8-12mm | |
|
Audio Talkback |
1 channel MIC input, External access, 3.5 mm audio interface | |
|
Audio Output |
1 channel linear output, 3.5 mm audio interface | |
|
Storage Interface |
Micro SD card supports video storage and image snapping; SD2.0 standard, maximum storage 32G | |
|
Network Interface |
Lan |
10/100M BASE-TX,RJ-45 connector |
|
I/O |
1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS232 interface | |
|
Audio video encoding |
| |
|
Video Compression |
H.264 Main Profile； | |
|
Resolution |
Master Streaming |
1920*1080,1-25（30）fps/sec 1280*960,1-25（30）fps/sec 1280*720,1-25（30）fps/sec |
|
Second Streaming |
640*480,1-25fps/sec | |
|
Video Bitrate |
32Kbps～16Mbps,Supports CBR/VBR | |
|
Title OSD |
Supports channel name, date, and video stream information overlay; OSD location is adjustable | |
|
Audio Compression |
G.726,G.711A,G.711U,AAC,support 32 K stereo | |
|
Data transmission and storage | ||
|
Data storage |
Video and Image | |
|
Recording |
Recording set up to record by motion trigger, alarm trigger, manual, or schedule | |
|
Alarm Output |
FTP,E-mail, Explorer, Software | |
|
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP | |
|
POE Module Built-in |
IEEE 802.3af | |
|
ONVIF protocol |
Support | |
|
Remote View |
Computer |
IE 6.0 or up, max 10 user |
|
Mobile Phone |
Windows Mobile, Symbian, iPhone, Android | |
|
General Parameters |
| |
|
Operating Temperature |
-10℃ - +55℃ | |
|
Operating Humidity |
0% - 90% | |
|
Power |
DC12V/POE(IEEE 802.3af)(Optional) | |
|
Power Consumption |
7W(MAX) | |
|

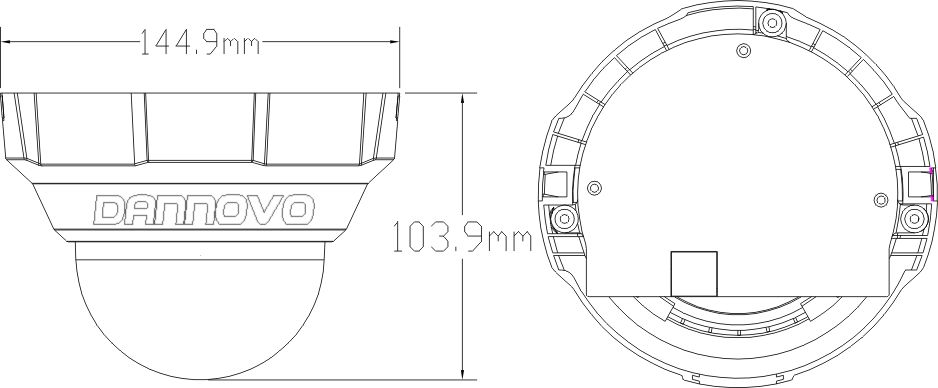

Dimension |
Φ145*104(H)mm | |
|
Weight |
0.6kg | |
