Product Name:

DANNOVO HD 720P 2.0 MegaPixel POE IP Camera,IR Wired Security Vandal-proof Waterproof Dome,Support ONVIF,Audio,SD card(DN-H12-MPC-IR-POE)

DANNOVO HD 720P 2.0 MegaPixel POE IP Camera,IR Wired Security Vandal-proof Waterproof Dome,Support ONVIF,Audio,SD card(DN-H12-MPC-IR-POE)
Inquire:HD 720P 2.0 MegaPixel IR POE IP Camera

Main Features

DANNOVO HD 720P 2.0 MegaPixel POE IP Camera,IR Wired Security Vandal-proof IP65 Dome,Support ONVIF,Audio,SD card(DN-H12-MPC-IR-POE):



HD 720P 2.0 MegaPixel IR Security POE IP Camera Features:

1/3" Progressive Scan CMOS,Total pixels:2.0 Megapixel,Min.Illumination:Color Mode:0.5Lux @(F1.2,AGC ON);B/W Mode:0Lux @(F1.2,IR ON),Video Compression:H.264 Main Profile,Dual Stream,Maximum Resolution:1600*1200(15fps/sec),Supports Audio,Alarm,SD Card Storage,IR Parameters:21 IR LEDs,IR distance 15M,Dual IR-Cut filte,720P HD 2 MegaPixel POE IP Camera Built-in POE Module,Vandal-proof Shell.

> 1/3" Progressive Scan CMOS sensor ;
> 720P HD 2 MegaPixel IP Camera,Support 1600*1200(15fps), 1280*960(25fps) high definition ;
> Support Color/BW mode converting (dual IR-Cut filter);
> Built-in 2.8-12mm manual varifocal lens;
> H.264/MJEG is optional, dual streaming, low bandwidth,high quality;
> Support AWB, natual color,clear image;
> Build in 1 channel audio input and audio output ports, support realtime audio capture and two-way talking Audio;
> Support protocals: RTSP,RTP,HTTP,TCP/IP,UDP,SMTP,PPPoE,DDNS,DNS, SNTP,DHCP,FTP;
> Support pravicy zone mask (max 4 individal mask zone);
> Alarm recording: video lost, motion detection and sensor alarm;
> Built-in Web server enables the use of a standard Web browser for viewing and management;
> DC12V/PoE power supply (options) .

  HD 720P 2.0 MegaPixel IR POE IP Camera Specifications HD 720P 2.0 MegaPixel IR POE IP Camera Details HD 720P 2.0 MegaPixel IR POE IP Camera Download

HD 720P 2.0 MegaPixel POE IP Camera Model

DN-H12-MPC-IR-POE
Hardware
Network chip Lan Realtek 10/100M BASE-TX Self-adapting
Sensor 1/3" Progressive Scan CMOS
Effective Pixels 1600(H)×1200(V)
Min.Illumination Color Mode:0.5Lux @(F1.2,AGC ON),B/W Mode:0Lux @(F1.2,IR ON)
S/N ≥50db(AGC OFF)
Day/night Auto,dual IR-Cut filter
IR Parameters 21 IR LEDs,IR distance 15m
Auto Electronic Shutter Auto
Interfaces
Optical lens Interfaces Φ14
Lens Manual zoom
Focal Length 2.8-12mm
Audio Talkback 1 channel MIC input, External access, 3.5 mm audio interface
Audio Output 1 channellinear output, 3.5 mm audio interface
Storage Interface Micro SDHC card supports video storage and image snapping; SD2.0 standard,maximum storage 32G
Network Interface Lan 10/100M BASE-TX,RJ-45 connector
I/O 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A,1 RS232 interface
Audio video encoding
Video Compression H.264 Main Profile;
MJPEG/JPEG Baseline
Resolution Master Streaming 1600*1200,1-15fps/sec
1280*960,1-25fps/sec
1280*720,1-25(30)fps/sec
Second Streaming 640*480,1-25fps/sec
320*240,1-25fps/sec
160*112,1-25fps/sec
Video Bitrate 32Kbps~16Mbps,Supports CBR/VBR
Title OSD Supports channel name, date, and video stream information overlay;OSD location is adjustable
Audio Compression G.726,G.711A,G.711U,AAC,support 32 K stereo
Data transmission and storage
Data storage Video and Image
Recording Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output FTP、E-mail, Explorer, Software
Network protocol TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
Wireless protocols /
ONVIF protocol Support
Remote View Computer IE 6.0 or up, max 10user
Mobile Phone Windows Mobile,Symbian,iPhone, Android
General Parameters
Vandal- proof capacity 1 ton impact
Operating Temperature -10℃ - +55℃
Operating Humidity 0% - 90%
Power DC12V/POE(IEEE 802.3af)(Optional)
Power Consumption 7W(MAX)

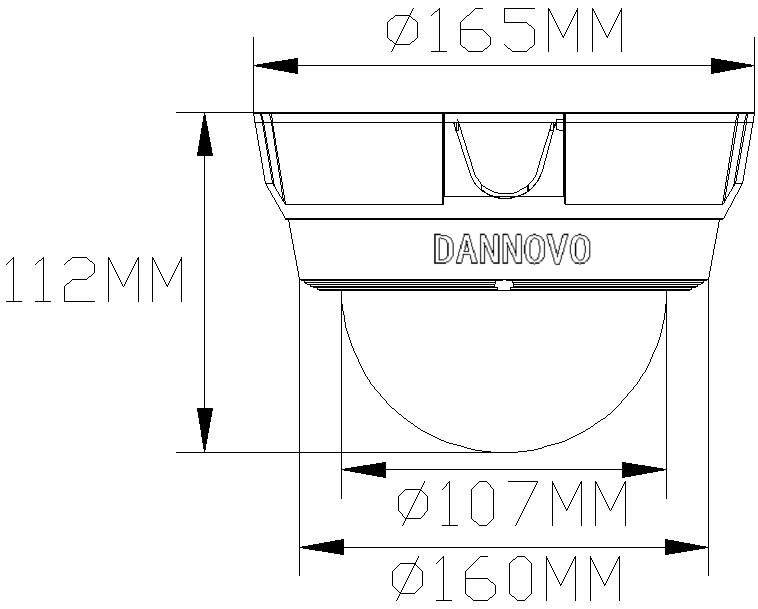

Dimension 112(H) * Φ165mm
Weight 1.5kg
