Product Name:
DANNOVO Samsung,Sony,Hitachi cameras High Speed Dome PTZ Camera,Outdoor/Indoor Use,360°Infinite Continuous Rotation(DN-CPTZ039H)
Main Features
DANNOVO Samsung,Sony,Hitachi cameras High Speed Dome PTZ Camera,Outdoor/Indoor Use,360°Infinite Continuous Rotation(DN-CPTZ039H):
High Speed Dome PTZ Camera Features:
>Samsung,Sony and Hitachi Cameras Optional;
>Optional Cameras:
Samsung 23x, Samsung 27x, Samsung 30x, Samsung 33x, Samsung 37x;
Sony 18x, Sony 26x, Sony 28x, Sony 36x;
Hitachi 22x, Hitachi 23x, Hitach 30x, Hitachi 36x.
>Effective pixels: 752(H)X582(V);
>High Speed Dome:Horizontal Rotation Range:360º Infinite Continuous Rotation,Tilt Rotation Range:0°~90° Flip;Pan Speed:0.1~300°/s;
Tilt Speed:0.1~120°/s;
>Function display: OSD;
>Preset Speed: 400 Deg/Sec
>Preset Point: 128 Points.
>PTZ tour: 3 Programmable(120 Sec/tour);
>Diameter of Dome: 6";
Optional Models:

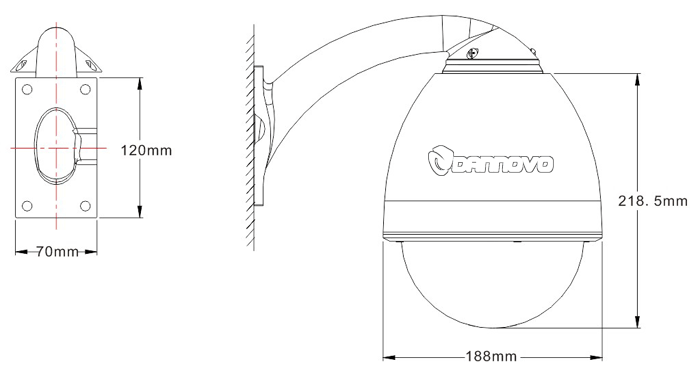

Indoor Dome: DN-CPTZ039Ha;

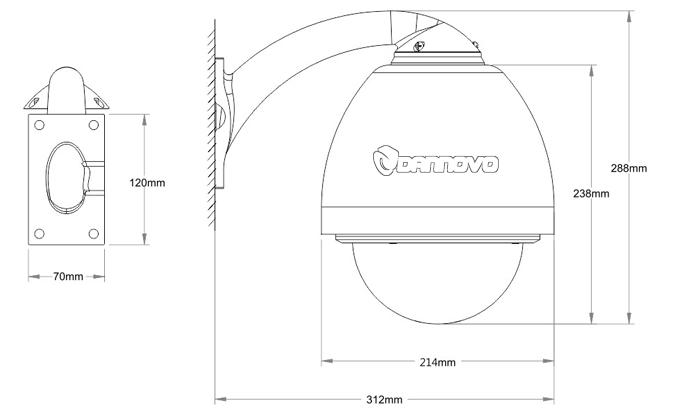

Outdoor Dome: DN-CPTZ039Hb
 |
 |
 |
|
 |
|||
| Optional Model NO. | Description | Other Same Brand Cameras Options |
| Samsung SCM-2230P,23x Zoom Color | 1/4 inch, Interline Transfer CCD 23x, f=3.84 to 88.4mm(F 1.6 to 3.2) Color:540TVLine(Min.) | Samsung SCM-2231P,23x Zoom D/N; Samsung SCM-2271P,27x Zoom D/N; Samsung SCM-2301P,30x Zoom D/N; Samsung SCM-2331P,33x Zoom D/N; Samsung SCM-3331P,33x Zoom D/N/WDR; Samsung SCM-3371P,37x Zoom D/N/WDR. |
| Samsung SCM-2371P,37x Zoom D/N | 1/4 inch, Double density interline treneter CCD37x, f=3.5 to 129.5mm(F 1.6 to 3.9) 550TVLines(Min.):Color / 680TVLines(Min.) :B/W | |
| Sony FCB Ex-45CP,18x Zoom, color | 1/4 type IT SuperHAD Super HAD CCD 18x f = 4.1 (WIDE) to 73.8 (TELE) mm 460TVLines | Sony FCB Ex-480CP,18x Zoom, D/N; Sony FCB Ex-990DP,26x Zoom,D/N,WDR; Sony FCB Ex-985EP,28x Zoom,D/N; Sony FCB Ex-995EP,28x Zoom,D/N,WDR,ST; Sony FCB Ex-1010P,36xZoom D/N; Sony FCB Ex-1020P,36x,D/N,WDR,ST. |
| Sony FCB Ex-980P,26x Zoom, D/N | 1/4 type IT Ex-VIEW HAD 26x Zoom D/N f=2.5 mm (wide) to 91.0 mm (tele) (F1.6 to F3.8) 460TVLines | |
| Hitachi VK-S635EN,30x Zoom,D/N,WDR | 1/4” ExViewHAD CCD,30x D/N,WDR | Hitachi VK-S214ER,22x Zoom,Color; Hitachi VK-S858EN,23x Zoom,D/N,WDR; Hitachi VK-S655EN,36x Zoom,D/N,WDR. |
Specifications
| Dome Type |
DN-CPTZ039H High Speed Dome | |
| Indoor Dome | Outdoor Dome | |
| Model No. | DN-CPTZ039Ha | DN-CPTZ039Hb |
| Address | 0~255 | |
| Pan Range | 360°Continue Rotation | |
| Tilt Range | 0°~90° Flip | |
| Manual Speed Pan | 0.1~300°/Sec | |
| Manual Speed Tilt | 0.1~120°/Sec | |
| Preset Speed | 400°/Sec | |
| Preset Accuracy | ±0.10° | |
| Preset Points | 128 Points | |
| Home Position | Yes | |
| Operation Return Function | Yes | |
| Vector Scan Groups | 6 Programable(Dwell Time/Speed/Preset Point) | |
| Integrate Multi-protocol | Pelco_D/P | |
| Auto Scan | with Smart Programable Variable Speed | |
| High Efficient 3-Dimension Scan | Yes | |
| Long-focus Speed-limited | Yes | |
| Intelligent Power Off Real Time Memory | Yes | |
| Home position | Yes | |
| Supporting Camera | Automatically Detect 8 kinds of camera(Sony, Hitachi, Yoko, CNB, Sanyo, LG, Hitron and Samsung) | |
| Camera Menu Operation | Yes | |
| Continue Manual | Endless | |
| Ingress Protection IP66 | No | Yes |
| Operating Temperature | 0℃~50℃ | –22℃~60℃ |
| Humidity | 0%~90% (Non condensing) | |
| Heater operate | No | 6℃ on 14℃ off |
| Power | 24VAC 2A 60Hz/50Hz | |
| Consumption | < 26W | < 41W |
| Communication | RS485 (+/-) | |
| Connection | BNC Cable | |
