Product Name:

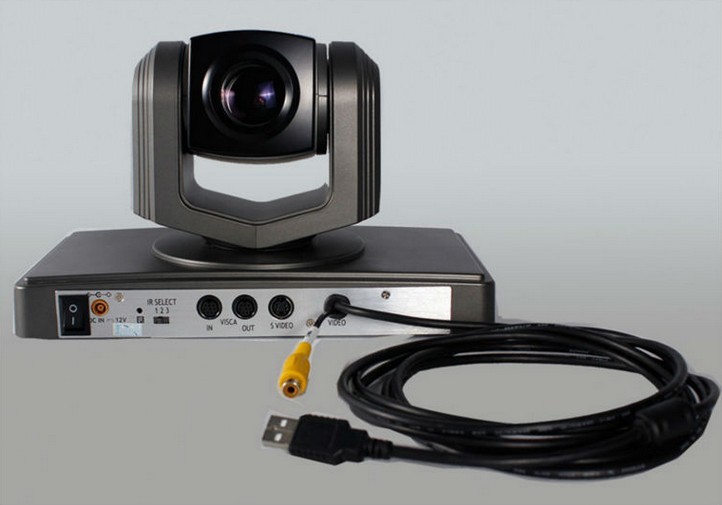

DANNOVO USB Sony Camera 18x for Video Conferencing,PELCO-D,VISCA,Ceilling and Wall Mounted(DN-C07B)

DANNOVO USB Sony Camera 18x for Video Conferencing,PELCO-D,VISCA,Ceilling and Wall Mounted(DN-C07B)
Inquire:USB Sony Camera 18x for Video Conferencing

Main Features

DANNOVO USB Sony Camera 18x for Video Conferencing,PELCO-D,VISCA,Ceilling and Wall Mounted(DN-C07B):



USB Sony Camera 18x for Video Conferencing:



>Adopting 1/4 Exview CCD Sensor;
>Sony CCD 550TVLine;
>USB PTZ Camera;
>USB Interface with Built-in Video Capture Card;
>Sony Module:18x Optical X 12x Digital Zoom(216xZoom);
>Sony Module and China18x 650TVLine Module Optional(China18x Module Doesnt support Image Auto-Flip);
>Support S-Video Video Output Mode;
>Focal Length:f=4.1-73.8mm F1.4-3.0;
>Support Image Auto-Flip Function;
>Pan/Tilt Rotation Angle:Horizontal 360 degree,Vertical:125 degree;
>Pan Speed:1-200degree/s;Tilt Speed:1-150degree/s;
>PTZ Controlling Protocol:PELCO-D, VISCA;
>Remote Controller for controlling PTZ,Zoom,Preset Position and OSD etc.

Optional Models:

DN-C07B China Module: 18x Optial Zoom, 650TVLine,CVBS and USB Interface.

  USB Sony Camera 18x for Video Conferencing Specifications USB Sony Camera 18x for Video Conferencing Details USB Sony Camera 18x for Video Conferencing Download

USB PTZ Camera For Video Conference Model

DN-C07B
Image Sensor Sensor 1/4" Exview CCD
Signal System PAL/NTSC
Illumination 1.0Lux/F1.4
White Balance Auto/Manual
Gain Control Auto
Back-light compensation On /Off
E-Shutter 1 - 1/100,000s
Horizontal Resolution 550TVLine
S/N Ratio >50db
Lens Focus f=4.1-73.8 F1.4 -3.0
Iris Auto/Manual
Zoom Sony 18x Optical X12x Digital Zoom
Video Output VBS: 1.0Vpp at 75 Ohm, S-Video
Control Decoder Built-in decoder
Communication Interface EIA/RS422, EIA/RS232(Bidirectional)
PTZ Control Protocol VISCA,PELCO-D
Baud Rate 9600/38400bps
Patrol Lines 4 Patrol Lines
Preset Position 9 / 255 Preset Position
Power-off Protection Saved scanning or patrol line settings Automatically Before power off
Speed Matching Slow down camera Pan/Tilt movement speed while camera zooming in
OSD Menu To change parameters of camera or camera module from OSD Menu
Image Auto Flip Image Auto Flip
Pan Speed 1-200 degree per second
Tilt Speed 1-150 degree per second
Pan Rotation Angle 360 degree continuously
Tilt Rotation Angle 125 degree
Auto Pan Scan Support auto pan scanning
Boundary Scan 0-359 degree (programmable)
Remoter Control IR wireless remote controller P/T/Z
Power Supply DC12V±10%, 1.2A
Working Temperature 0-50℃
Environment Humidity 0-95%RH
